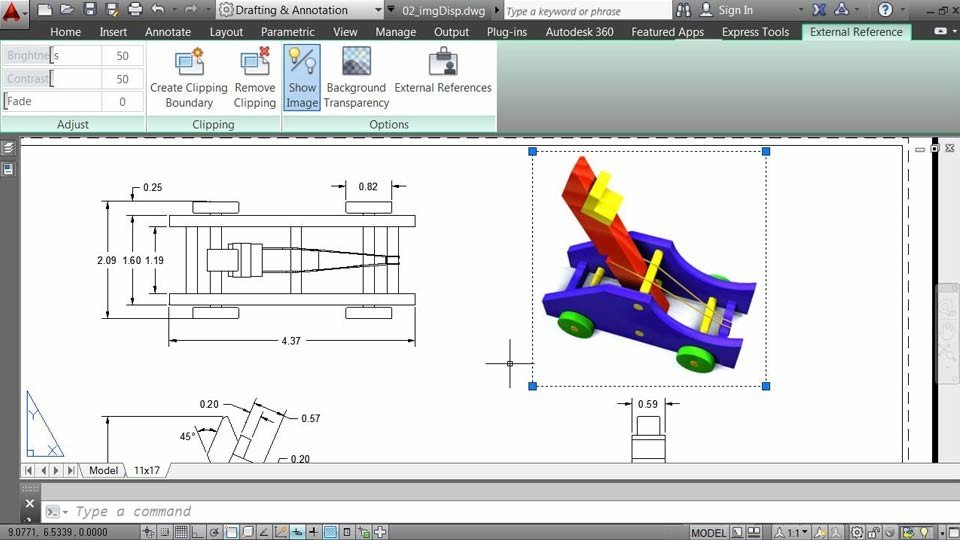

Learn to work with AutoCAD blocks, link to other drawings, and insert images in this AutoCAD tutorial.

Syllabus

Introduction
  • Welcome
  • Using the exercise files
  • Converting units from Imperial to Metric
1. Managing Blocks
  • Inserting blocks
  • Creating blocks
  • Leveraging blocks
  • Redefining blocks
  • Building a block library
2. Linking to Other Drawings
  • Understanding external references
  • Creating a link to a DWG file
  • Controlling the appearance of referenced drawings
  • Choosing between Attach and Overlay
  • Clipping an external reference
  • Binding references
3. Incorporating Images
  • Inserting images
  • Editing the appearance of images
  • Clipping images
  • Sizing images to a measurable scale
4. Checking Your Skills
  • Intro: Working with references
  • Demo: Working with references
Conclusion
  • Goodbye

Taught by

Jeff Bartels

Reviews

4.3 rating at LinkedIn Learning based on 6 ratings

Start your review of AutoCAD 2014 Essential Training: 5 Working with References
